Pattern Identification

Pattern matching is the process of determining whether or not the details of striated marks or impressions on two objects correspond. Early forensic scientists and their successors, (including Calvin Goddard, Julian S. Hatcher, Gerald Burrard, J. Howard Mathews) practiced pattern matching. Today, examiners continue to rely on their extensive experience, training, and education to perform the specialized pattern identification represented by toolmark identification.

The examiner compares the class characteristics of the two objects; if all class characteristics correspond, the examiner proceeds to compare the individual characteristics. During the comparison of the individual characteristics, the examiner looks for repetitive marks occurring on both objects in the same location and position. The examiner may test the tool in an effort to re-create the marks for comparison with the evidence marks.

This is a somewhat subjective process performed by the examiner. Pattern identification relies on the experience, training, and education of the examiner. The quality of training is the single most important element of the examiners competence and expertise. Long-term hands-on experience is gained from working side-by-side with an experienced examiner in a structured training program.

The most difficult aspect of this mental process is the articulation of how an identification can be determined. This process has traditionally been more qualitative than quantitative, and therefore difficult to convey to a jury.

What was needed was a structured theoretical basis to assist in

• establishing an identification as to a common source,
• conveying results to a jury,
• justifying results to a jury.

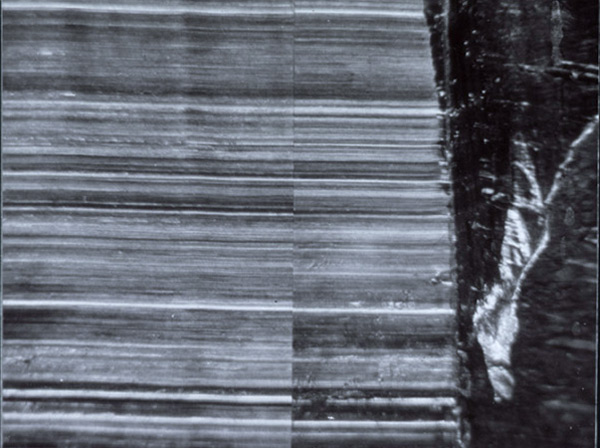

Consecutive Matching Striae

An evolving concept in striated mark comparisons is the developing study of consecutive matching striae (CMS) as a quantitative method of describing an observed pattern match. CMS is simply a means of articulating the best known nonmatch described and defined by the AFTE Theory of Identification.

CMS was initially proposed in a paper written by Al Biasotti and published in the Journal of Forensic Sciences in 1959 (A Statistical Study of the Individual Characteristics of Fired Bullets). In an extensive analysis of 720 known nonmatch comparisons of land and groove impressions in fired bullets, Biasotti found no instances in which the CMS exceeded four. In 1997, Biasotti and John Murdock jointly published their conservative quantitative criteria for identification as expressed in terms of CMS.

In three dimensional toolmarks when at least two different groups of at least three consecutive matching striae appear in the same relative position, or one group of six consecutive matching striae are in agreement in an evidence toolmark compared to a test toolmark. In two dimensional toolmarks when at least two groups of at least five consecutive matching striae appear in the same relative position, or one group of eight consecutive matching striae are in agreement in an evidence toolmark. For these criteria to apply, however, the possibility of subclass characteristics must be ruled out.

A number of significant studies have been carried out in an effort to further validate these conservative criteria.

Although not necessarily practiced by all firearms examiners, these criteria are of growing importance due to these factors:

• The expectations of more sophisticated jurors
• The need more objective identification criteria
• The changing environment of the courtroom following Daubert v. Merrell Dow Pharmaceuticals
• The potential for increased credibility for examiners in the courtroom
