Firearms Examiner Training

Long or Shoulder Firearms

Home  |  Glossary  |  Resources  |  Help  |  Contact Us  |  Course Map


Long or Shoulder Firearms

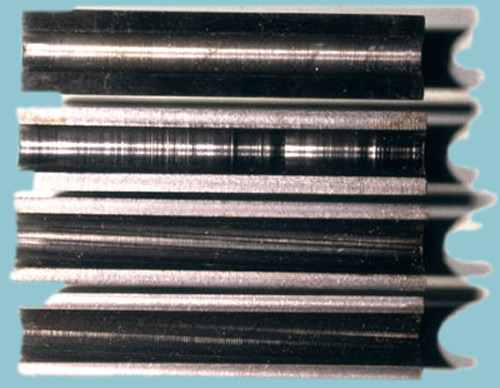

Sectioned barrels, top to bottom: reamed, drilled, button rifled, broached
Sectioned barrels, top to bottom: reamed, drilled, button rifled, broached
Courtesy of Jack Dillon (ver política de reutilización).

Long (shoulder) firearms fall into two groups - rifles and shotguns. As the name implies, these firearms are designed to be fired from the shoulder using both hands. Although barrels can be shortened, the original design determines whether it is a rifle or a shotgun.

Shoulder-fired weapons with rifled barrels (lands and grooves) are rifles, and those with smooth-bored barrels are shotguns. It should be noted that a number of shotguns are manufactured with rifling in the barrel for use with slug loads. If the caliber designation is stated as gauge, it is classified as a shotgun (one exception is the 410 Bore designation).



Rifles

Heckler & Koch G3 and box magazine
Heckler & Koch G3 and box magazine
Courtesy of Forensic Technology Inc. Gunsights Pro 3.0 (ver política de reutilización).

The category of rifles is very large, ranging from a single shot .22 caliber gallery rifle to a .50 caliber semiautomatic rifle. They can be single-shot, multibarreled, or magazine fed.

Rifles incorporate several action types, including these:

The four types of rifle magazines:

  • Removable box
  • Internal box
  • Rotary
  • Tubular
Removable box magazine
Removable box magazine
Courtesy of Forensic Technology Inc. Gunsights Pro 3.0 (ver política de reutilización).
Savage rotary magazine
Savage rotary magazine
Courtesy of Bill Conrad (ver política de reutilización).
Tubular magazine
Tubular magazine
Courtesy of Bill Conrad (ver política de reutilización).



Visual Examination

M14 rifle
M14 rifle
Courtesy of Forensic Technology Inc. Gunsights Pro 3.0 (ver política de reutilización).

Visual examination of the firearm will determine the following:

  • Type of magazine.
  • Type of action.
  • Caliber designation (this can be difficult to determine when examining foreign and/or military rifles because most are not marked with the caliber designation).
  • Telescopic sights, (most of which have multiple adjustments within the scope).
    • These settings should be recorded, including the variable magnification setting.
  • Safety - most rifles have some type of external safety and possibly a disconnector safety.

The term "assault rifle" refers to compact, select-fire, detachable box magazine-fed firearms that use a centerfire rifle cartridge and are designed primarily for military use. Many rifles resemble a true assault rifle because they have a military-like appearance. These do not have a selector and operate only in the semiautomatic mode. They may be modified in an attempt to make them fire in full automatic mode.



Shotguns

Armscor 30 DG double barrel shotgun
Armscor 30 DG double barrel shotgun
Courtesy of Forensic Technology Inc. Gunsights Pro 3.0 (ver política de reutilización).

Shotguns have single- or double-barrel configurations. Double-barrel configurations can be side by side or over/under and generally have a break open action.

Single barrels use the following action types:

  • Break open
  • Pump (or slide)
  • Bolt
  • Semiautomatic (gas and recoil operated)
Benelli Nova pump shotgun
Benelli Nova pump shotgun
Courtesy of Forensic Technology Inc. Gunsights Pro 3.0 (ver política de reutilización).

Shotguns also have barrel constrictions (choke) that control the pellet pattern spread. Choke is used in all gauges of shotguns.

The most common types of choke:

  • Full (most restriction)
  • Modified (some restriction)
  • Cylinder (no restriction)

There are other less frequently used choke sizes as well as variable chokes. Newer shotguns can have interchangeable chokes
