Comparison Microscope

Air gap measurement under a comparison microscope
Air gap measurement under a comparison microscope
Courtesy of Ronnie Freels (ver política de reutilización).

The air gap method can be used to measure land and groove impressions.

Using a comparison microscope:

  1. Place a fired evidence bullet on a bullet mount on one stage of the comparison microscope.
  2. Mount the micrometer, jaws up, on the other stage.
  3. Set the objective lenses for both stages to the same magnification.
  4. Focus both lenses.
  5. Open the jaws of the micrometer to match the reference points on the fired bullet.
  6. Record reading (air gap) to the nearest thousandth of an inch.
  7. Rotate the bullet to the next land or groove impression.
  8. Repeat steps 4 - 7 until all land and groove impressions are measured.

Stereomicroscope

Stereomicroscope
Stereomicroscope
National Institute of Justice (NIJ) (ver política de reutilización).

Using a stereomicroscope land and groove impressions can me measured as follows,

  1. Place a fired evidence bullet and the micrometer under the microscope.
  2. Open the jaws of the micrometer to match the reference points on the fired bullet.
  3. Record the reading to the nearest thousandth of an inch.
  4. Rotate the bullet to the next land or groove impression.
  5. Repeat steps 2 - 4 until all land and groove impressions are measured.



Reticules

Glass

Measuring grid of the eyepiece
Measuring grid of the eyepiece
Courtesy of Ronnie Freels (ver política de reutilización).

The process for measuring land and groove impressions with a glass reticule is as follows:

  1. Place the bullet on a fixed mount that can be rotated.
  2. Rotate the bullet to the selected land or groove impression.
  3. Bring both reference points into focus.
  4. Superimpose the measuring grid of the eyepiece on the surface of the bullet.
  5. Take a measurement reading to the nearest thousandth of an inch.
  6. Rotate the bullet to the next land or groove impression and repeat steps 3 5.

It is important to note that both of the eyepieces of the microscope must be adjustable to use this technique.

Electronic

The steps for measuring land and groove impressions using electronic reticules are the same as those for glass reticules.

Digital Equipment

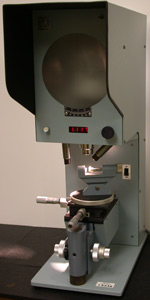

MP 6 optical projector
MP 6 optical projector
Courtesy of Ronnie Freels (ver política de reutilización).

MP 6 Optical Projector

The process for measuring land and groove impressions with an optical projector is as follows:

  1. Mount the nose of a bullet on a moveable stage - the bullet image is projected onto a hooded screen that displays a measuring grid.
  2. Bring both edges of the selected land or groove impression into focus.
  3. Align one reference point on the impression with a line on the measuring grid - the reference point is designated as zero.
  4. Move the bullet and its mount by rotating the knob until the next reference point is reached the width of the land or groove impression is displayed in an LED readout in thousandths of an inch.
  5. Rotate the bullet on its mount to the next land or groove impression.
  6. Repeat steps 2-5 until all land and groove impressions are measured.



FBI GRC File Standards

The FBI GRC file is a collection of well-documented, known GRC data that can be used as a standard for comparison of class characteristics of no-gun submission evidence bullets. The GRC digital database file can be searched electronically or in print form.

The general rifling characteristics derived from a fired evidence bullet are an indication of the brand(s) and model(s) of firearm from which the bullet could have been fired.

GRC file page
GRC file page
Courtesy of Ronnie Freels (ver política de reutilización).

The data obtained from a fired bullet provides the input data for searching the GRC file, including

  • caliber,
  • number of lands and grooves,
  • direction of twist,
  • land and groove impression measurements,
  • other information.

The examiner must use experience, skill, and judgment to determine and refine the parameters of the search criteria entered into the GRC file. The GRC search produces a list of potential firearms from which the bullet could have been fired.
