Computer-Based Technologies

In recent years, advanced computer-based tools have been used to screen firearms-related evidence items for potential linkages to local, regional, and international incidents. Advanced computer and optical hardware are combined with software to manage a combination of specialized computer algorithms, pattern recognition technology, and digital imaging.

The product of this advanced technology is a preliminary computer-based selection of high-probability associations. As a result, investigative resources are focused on a typically smaller group of individuals who often commit a disproportionately larger percentage of shooting crimes.

IBIS

A large IBIS workstation in use
A large IBIS workstation in use
Image courtesy of Forensic Technology, Inc. (ver política de reutilización).

The system for accomplishing these computer-based comparisons or correlations is the Integrated Ballistics Identification System (IBIS ®), developed by Forensic Technology, Incorporated (FTI), of Montreal.

This technology can be configured according to the needs of an individual law enforcement agency.

Visit the Forensic Technology website

In the United States the use of this technology is coordinated by the National Integrated Ballistic Information Network (NIBIN), a group governed by an executive board with three members, including one each from

  • Bureau of Alcohol, Tobacco, Firearms and Explosives,
  • Federal Bureau of Investigation,
  • State or local law enforcement agency.

This nationally interconnected, computer-assisted system facilitates the transmission of digital images of fired bullets and cartridge cases.

Visit NIBIN's website

Note:
It should be stressed that a high correlation score by the IBIS® system is an investigative tool and must be followed by a documented forensic examination per laboratory protocol for presentation in court.



MatchPoint+

After images have been uploaded into IBIS ®, the examiner can use a MatchPoint+ workstation to perform correlations and on-screen preliminary side-by-side comparisons of images that are stored in the centralized IBIS database.

MatchPoint+ further allows images to be altered in the following ways:

  • Magnification
  • Light intensity and direction
  • Contrast
  • Depth
  • Dimensional aspects

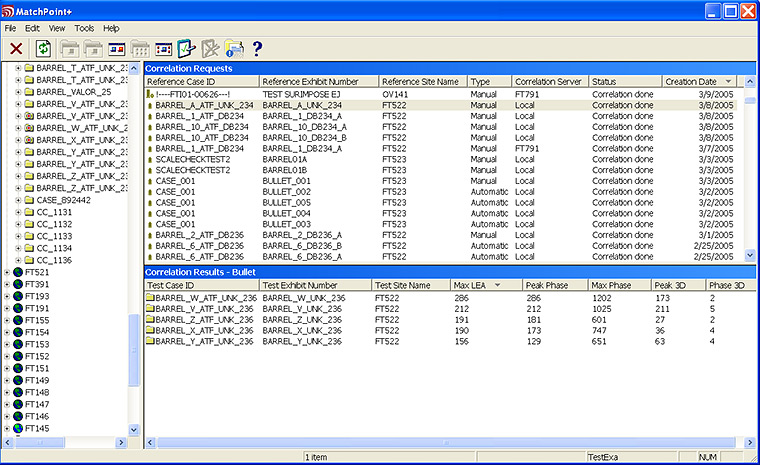

Print version of correlation results in MatchPoint+™
Print version of correlation results in MatchPoint+™
National Institute of Justice (NIJ) (ver política de reutilización).

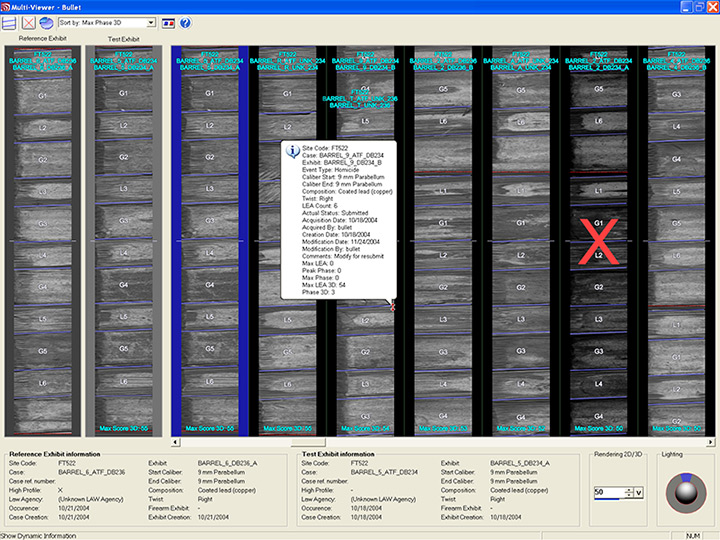

Multi-viewer screen of candidate bullet images
Multi-viewer screen of candidate bullet images
National Institute of Justice (NIJ) (ver política de reutilización).

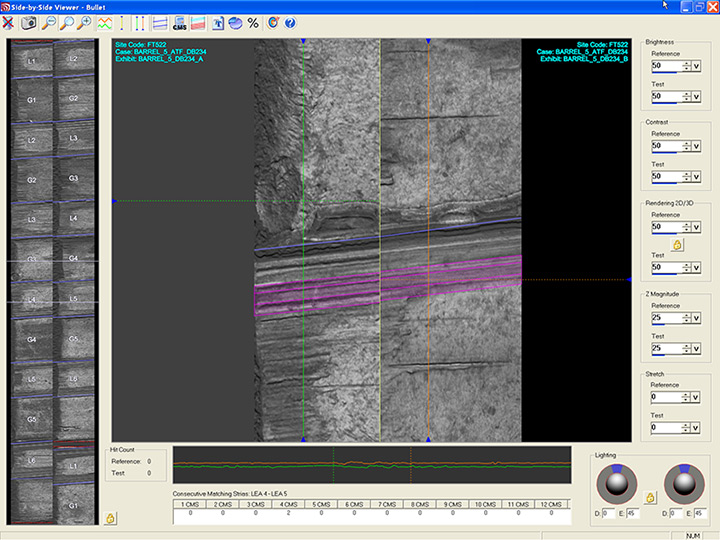

Consecutive matching stria defined in color in an on-screen comparison
Consecutive matching stria defined in color in an on-screen comparison
National Institute of Justice (NIJ) (ver política de reutilización).



BulletTrax-3D

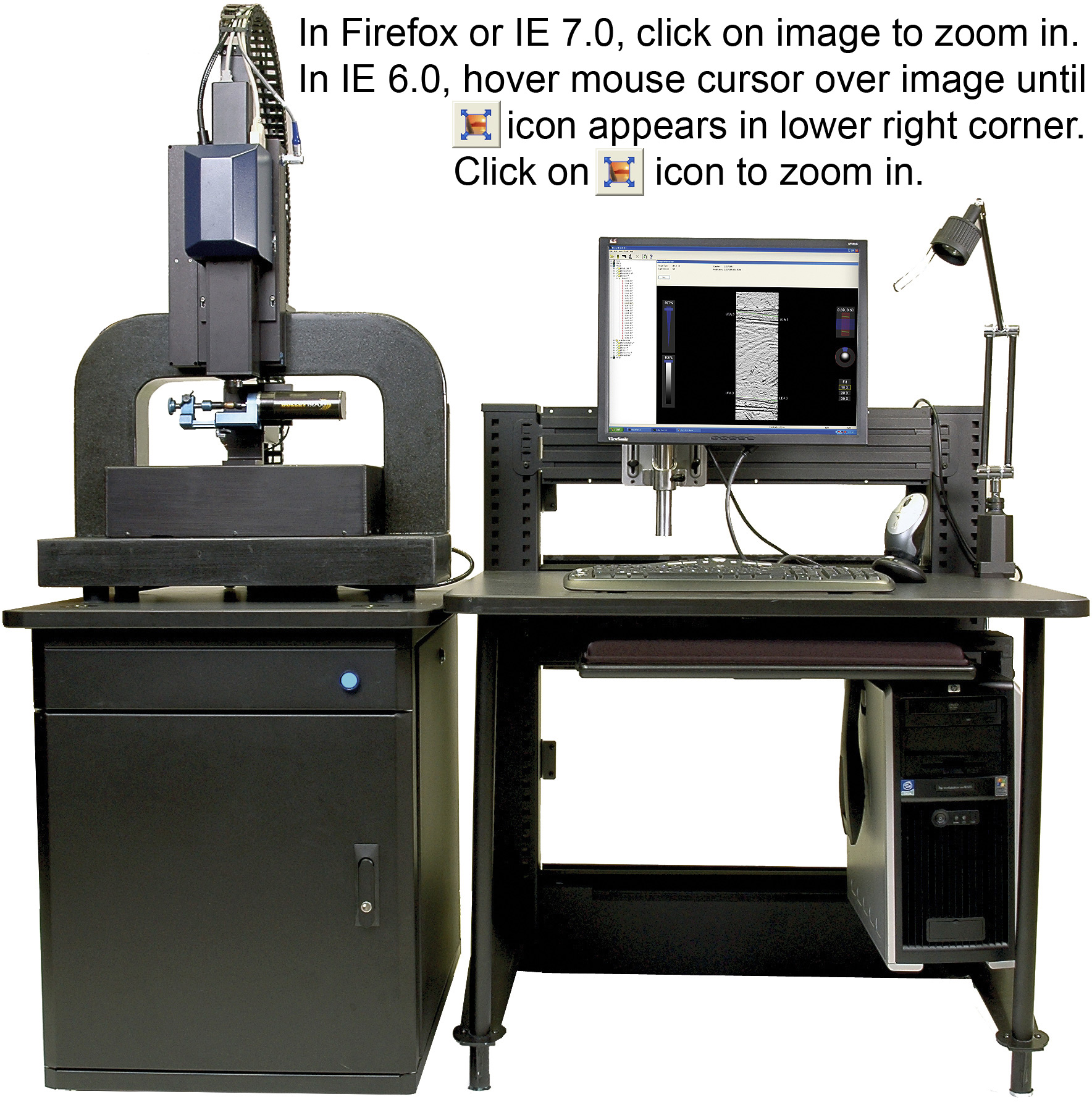

The BulletTRAX-3D™ workstation
The BulletTRAX-3D™ workstation
Image courtesy of Forensic Technology, Inc. (ver política de reutilización).

BulletTRAX-3D is the latest technological evolution from FTI (Forensic Technology, Inc.) and is designed to address the comparison needs of the forensic firearms examiner. When paired with MatchPoint+, it allows the examiner to personally conduct preliminary correlations prior to actual microscopic comparisons.

This system moves beyond IBIS® technology and includes the following:

  • confocal microscope designed to simultaneously gather two- and three-dimensional images of bullet surface topography
  • A digital camera to capture the data
  • An automated bullet holder to physically manipulate bullets, including damaged bullets
  • Computer hardware
  • Proprietary software to manage image capture, transmission, and storage on a computer server

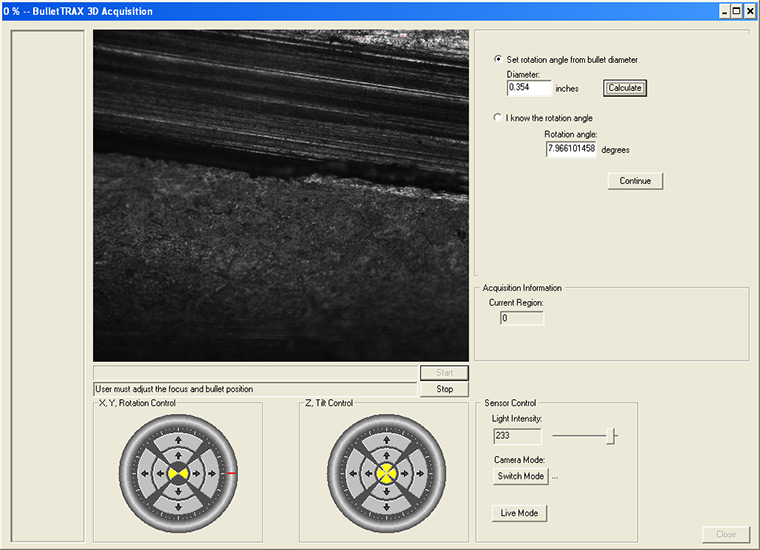

Digital screen images depicting the surface of a fired bullet showing surface topography
Digital screen images depicting the surface of a fired bullet showing surface topography
Image courtesy of Forensic Technology, Inc. (ver política de reutilización).

This system expands case linkage capabilities from criminal cases to a broader scope that includes terrorist activities. As such, the examiner may be able to develop linkages between shooting incidents as a means of intelligence gathering. BulletTRAX-3D was preceded by products using the BulletProof and BrassCatcher software. These systems are still used by many laboratories.
